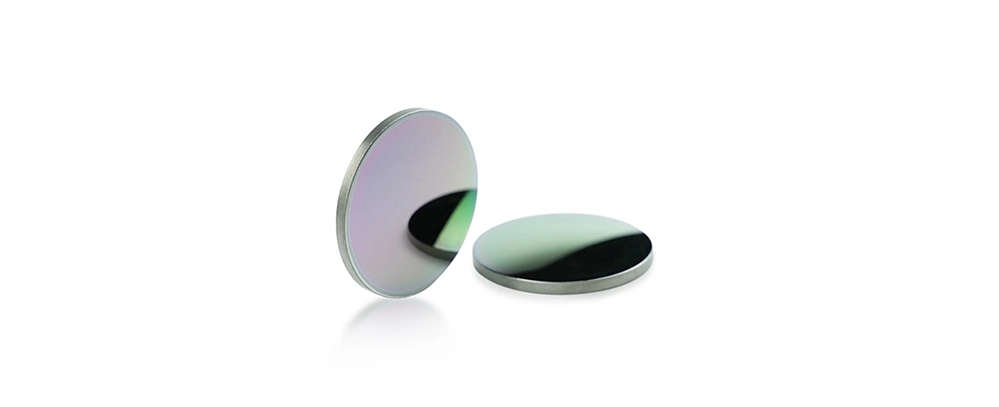

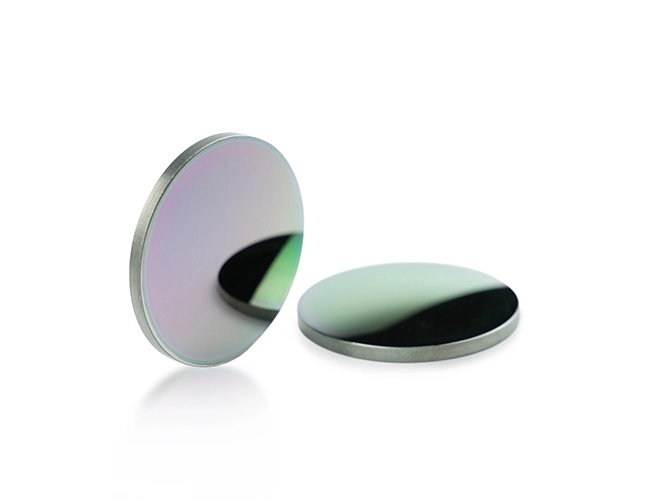

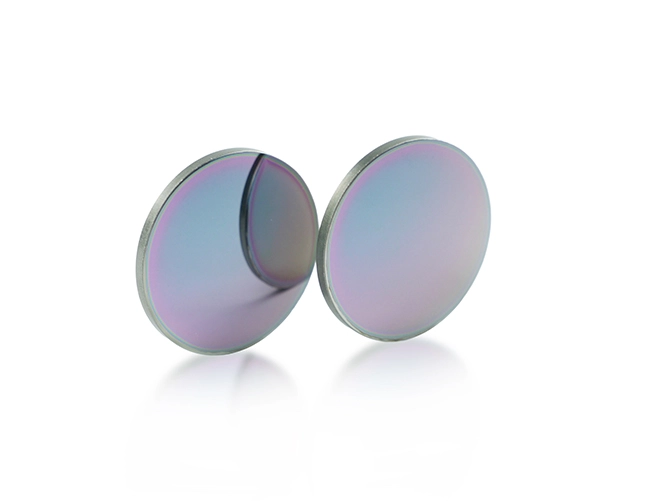

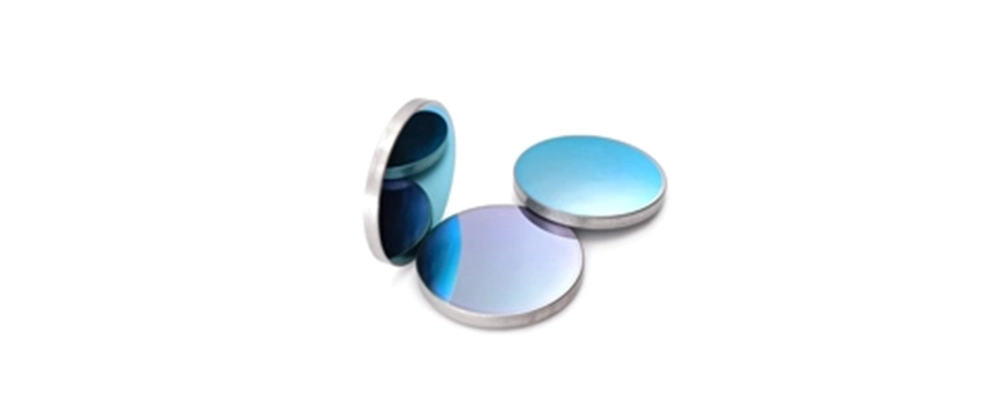

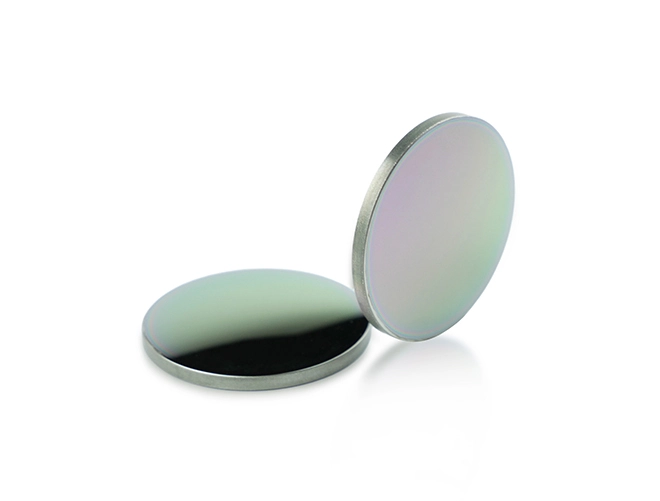

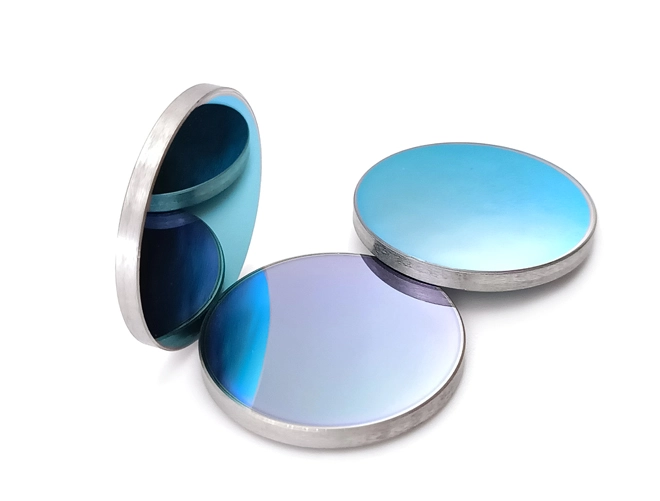

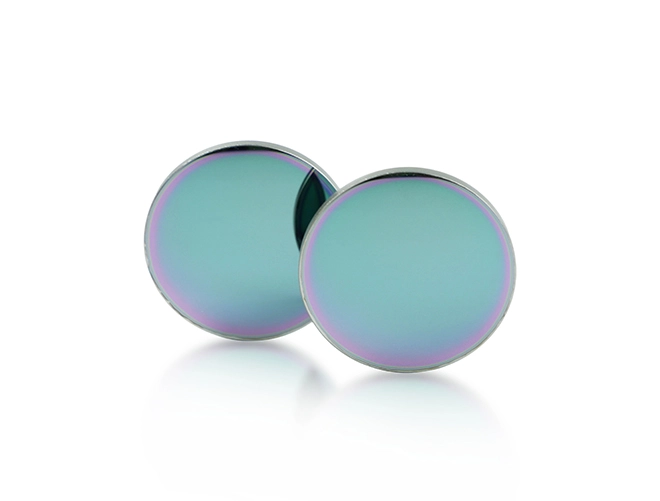

Infrared Optical Germanium Lens AR Coated Customized

Applicable to infrared imaging monitoringtelemetry and infrared spectroscopic optical system.

Manufactured from high-quality germanium, this lens offers excellent transmission in the infrared spectrum, making it ideal for thermal imaging, IR lasers, and spectroscopy. Each lens is AR coated to reduce surface reflections and enhance optical performance. Customization options are available to meet your exact specifications, ensuring optimal integration with your optical systems. With outstanding durability and superior performance, our germanium lenses are the perfect choice for high-demand IR applications. Rely on our expertise for customized infrared optical solutions tailored to your needs.

Products

Specifications of Infrared Optical Germanium Lens AR Coated Customized


Density(g*cm-3)5.33
Melting point(℃)936
Dielectric constant static/hyperframes16.6 @9.37GHZ(300K)
Thermal expansion coefficient(1/℃)6.1*10-6 @ 298K
Bulk modulus (Gpa)77.2
Shear modulus (Gpa)67
Thermal Conductivity   (J/k.m.s)58.61 @ 293K
Specific Heat(J/g.k)0.31
Knoop Hardness  (kg/mm²)780
Young's Modulus(Gpa)102.7
Poisson's Ratio0.28
Coefficient of elasticityC11 =129      C11 =48.3
C11 =67.1
Transmission wavelength2000nm—12000nm
Bulk Absorption Coefficient(1/cm)1.3*10-3@3800nm
3*10-2@10600nm
Thermo-optical  coeffecient,dn/dT  (1/k)4.08*10-4 @ 10600nm


Features of Infrared Optical Germanium Lens AR Coated Customized

Infrared Transmission: High transmittance in the infrared spectrum.
Low Dispersion: Minimal chromatic aberration for high-quality imaging.
Durable: Resistant to mechanical stress and environmental factors.
Broad Spectral Range: Transmits from mid-IR to far-IR wavelengths.

Advantages of Infrared Optical Germanium Lens AR Coated Customized

Advantages of Infrared Optical Germanium Lens AR Coated Customized
  • Infrared Transparency: Germanium lenses offer excellent transparency in the infrared spectrum, crucial for thermal imaging and sensing applications.

  • Low Dispersion: Minimal chromatic aberration ensures high-quality imaging in various IR applications.

  • Durable: Resistant to mechanical stress and harsh environments, ensuring long-term reliability.

  • Broad Spectral Range: Transmits wavelengths from mid-IR to far-IR, suitable for diverse optical systems.

Yasi Germanium Infrared Lenses: Promoting Development Across Multiple Industries

Yasi Germanium Infrared Lenses: Promoting Development Across Multiple Industries
  • Medical Imaging

Our Germanium Infrared Lenses play a crucial role in medical imaging devices, providing high resolution and clarity to assist doctors in accurate diagnosis and treatment. As one of the leading Germanium window suppliers, we ensure product quality and reliability.


  • Thermal Imaging

In thermal imaging applications, our Germanium Lenses precisely capture temperature variations, widely used in firefighting, security, and industrial inspection, enhancing safety and efficiency.


  • Spectral Analysis

Our Germanium IR Lenses excel in spectroscopic instruments, enabling precise analysis of chemical compositions. They are widely applied in environmental monitoring, food safety, and the pharmaceutical industry.


  • Military and Aerospace

In military and aerospace sectors, Yasi Germanium Infrared Lenses are used in night vision equipment and missile guidance systems, providing exceptional performance and reliability to ensure mission success.

Contact Yasi for Optical Components
If you have any problems or suggestions about the optical componets, please contact Yasi, we will reply as soon as possible.
