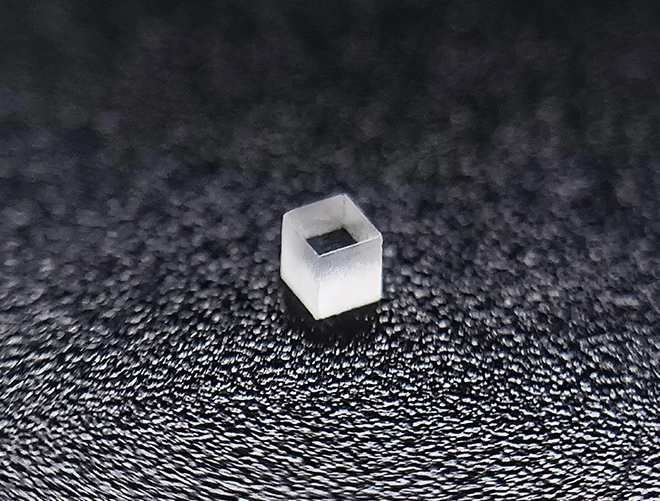

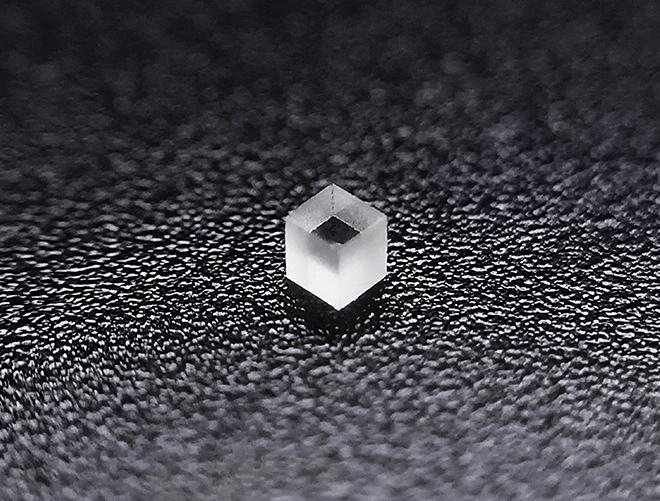

Made from superior K9 glass, this mini prism provides outstanding clarity and resilience, perfect for various applications. The miniature prism enhances advanced telecommunications systems, integrates seamlessly into consumer electronics, and supports critical medical devices and cutting-edge scientific research. Customized to meet specific needs, this mini prism with pole ensures exceptional accuracy and performance. Reflecting Yasi's unwavering commitment to excellence, the K9 Mini Prism is engineered to deliver optimal results, making it a reliable choice for your most demanding optical applications.
As one of the most widely demanded Optical Glass Components, pole mini prism is provided with three customization options in our factory. You can make customization decisions based on the needs of your company as follows. All the three dimensions of customization will be accompanied by a reasonable mini prism price.
| Technical Requirement | Commercial Grade | Precision Grade | High Precision |
| Size range | 0.5-600mm | 0.5-600mm | 0.5-600mm |
| Dimensional tolerance | ±0.1mm | ±0.025mm | ±0.01mm |
| Thickness tolerance | ±0.1mm | ±0.025mm | ±0.01mm |
| Angle tolerance | ±1'' | ±10'' | ±5'' |
| Surface quality | 60-40 | 40-20 | 20-10 |
| Surface accuracy | 2.0λ | λ10 | λ20 |
| Bevelling | 0.1-0.5mm*45° | ||
| Substrate | K9/Fused silica or other optical glass | ||
1. Superior Reflective Accuracy

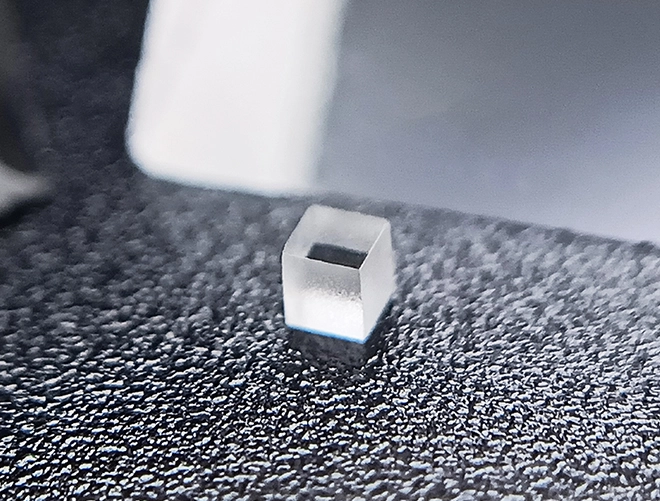

Our mini prism for total stations are crafted with the highest quality optical materials, ensuring exceptional reflective accuracy. This precision allows for the laser beam to be returned to the total station with minimal deviation, providing you with the most accurate measurements possible. When it comes to positioning and alignment, every millimeter counts, and our mini prism sets deliver unparalleled precision.
2. Robust and Durable Construction Built to withstand the rigors of the field, our sliding mini prisms are designed for durability. Whether you’re working in harsh weather conditions or rugged terrains, our prism mini maintains integrity and performance. This reliability ensures that your measurements remain consistent and accurate, no matter the environment, giving you peace of mind and confidence in your data.
3. Consistent Performance and Quality
In addition to being able to provide a reasonable mini prism for total station price, we pride ourselves on the consistency. All tiny prisms undergoes rigorous quality control to ensure it meets our exacting standards. This means you can trust that every mini prism pole you use will perform to the same high level, providing reliable and repeatable results. Consistency is key in precision work, and our prisms deliver it every time.
