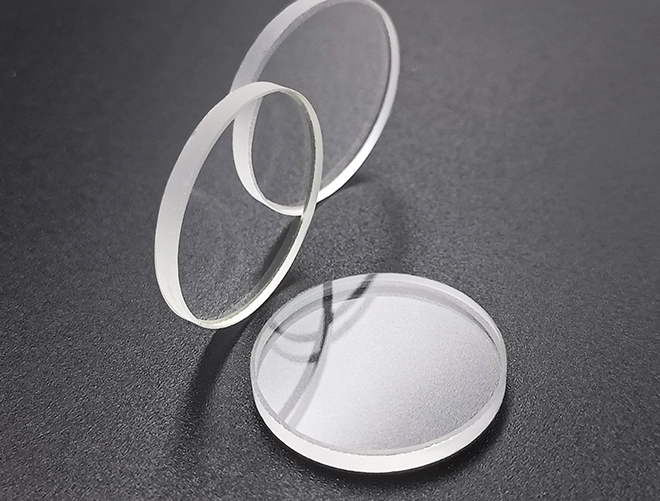

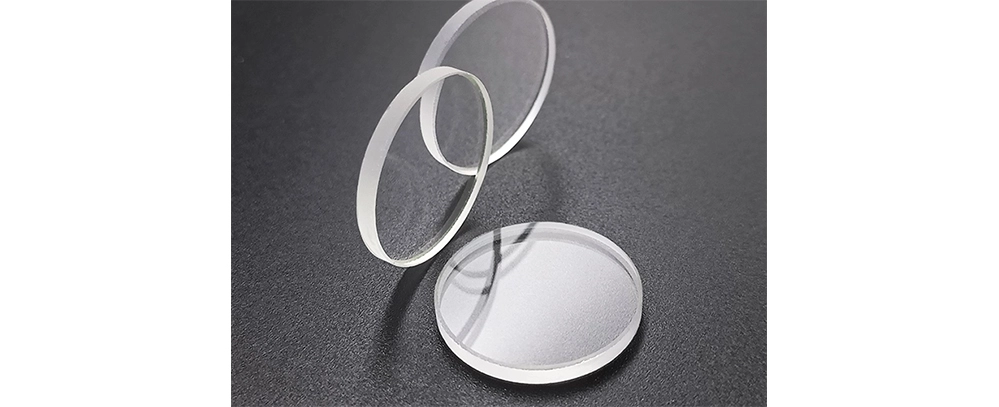

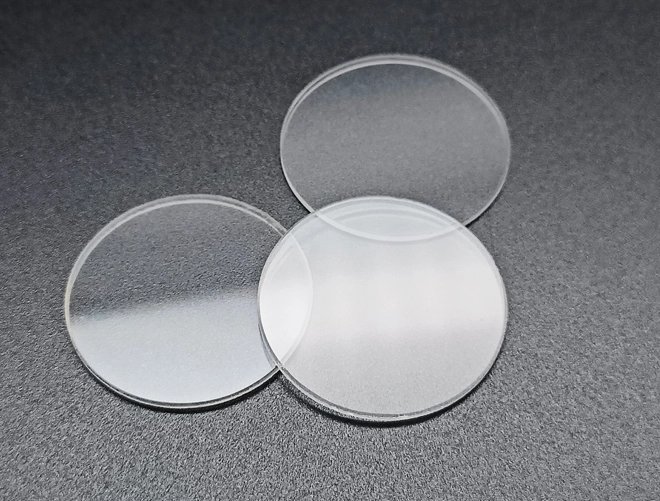

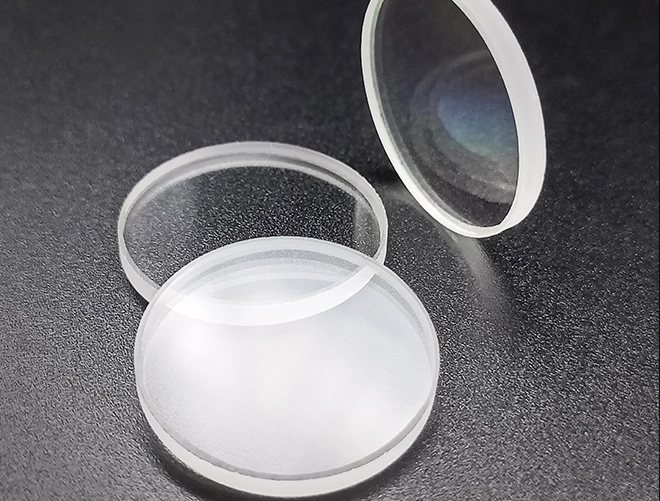

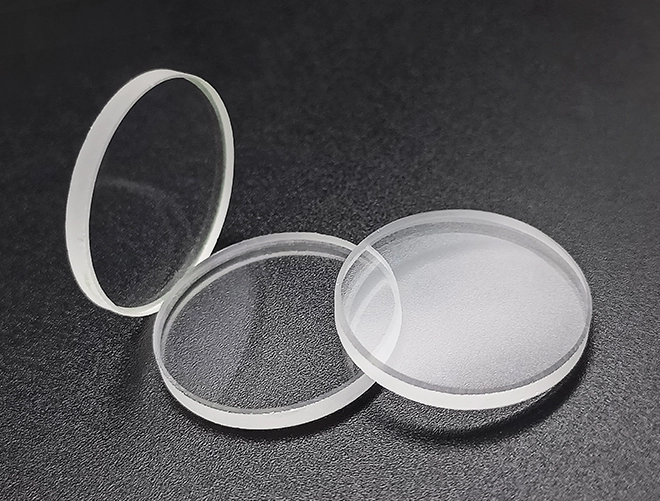

Infrared Optical LiF Window Customized

Its transmission spectrum ranges from 120nm to 7000nm, which is usually used in thermalimaging systems, Aerospace optical systems and excimer laser optical systems.

Products

Specifications of Infrared Optical LiF Window Customized


Technical
Requirement
Commercial GradePrecision GradeHigh Precision
Size range1-600mm2-600mm2-600mm
Dimensional
tolerance
±0.1mm±0.025mm±0.01 mm
Thickness
tolerance
±0.1mm±0.025mm±0.01mm
Parallelism±3'±15''±5''
Surface quality60-4040- 2020-10
Surface accuracy1.0λλ10λ/20
Bevelling
0.1 -0.5mm*45°
Substrate
LiF


Features of Infrared Optical LiF Window Customized

UV Transparency: High transmittance in the ultraviolet spectrum.
Optical Clarity: Provides clear vision for precise optical applications.
Chemical Stability: Resistant to acids and bases.
Thermal Stability: Maintains performance in fluctuating temperature environments.

Advantages of Infrared Optical LiF Window Customized

Advantages of Infrared Optical LiF Window Customized
  • UV Transparency: LiF windows offer high transparency in the ultraviolet spectrum, crucial for UV imaging and lithography applications.

  • Optical Clarity: Provides clear vision for precise optical alignment and calibration.

  • Chemical Stability: Resistant to acids and bases, ensuring durability in harsh environments.

  • Thermal Stability: Maintains performance in fluctuating temperature environments, suitable for a wide range of applications.
