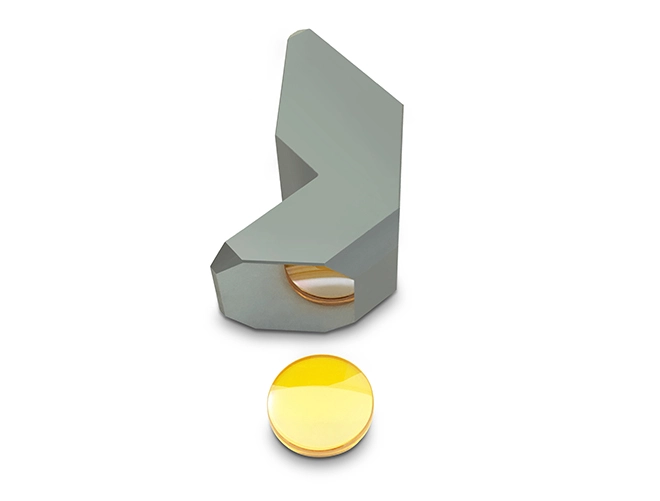

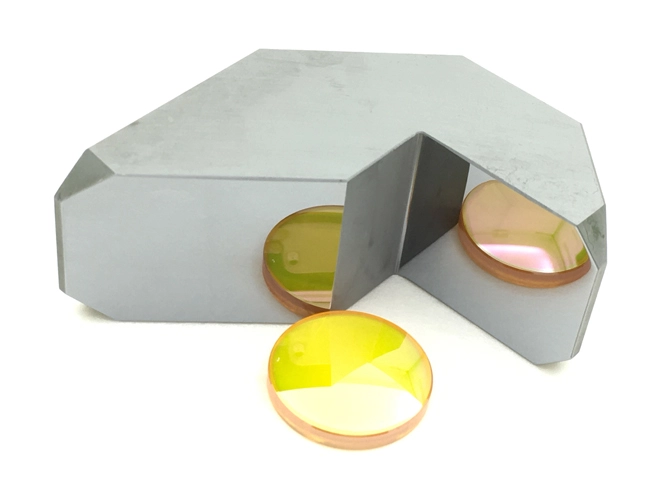

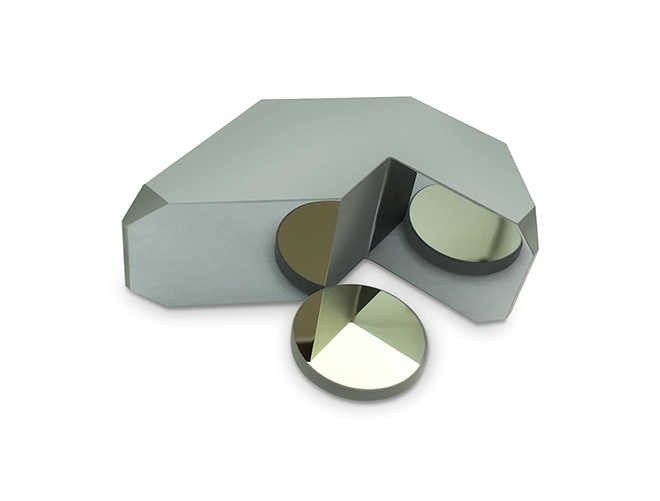

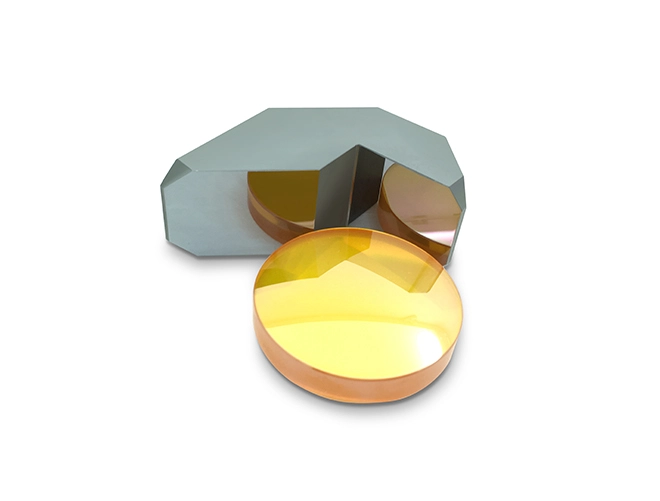

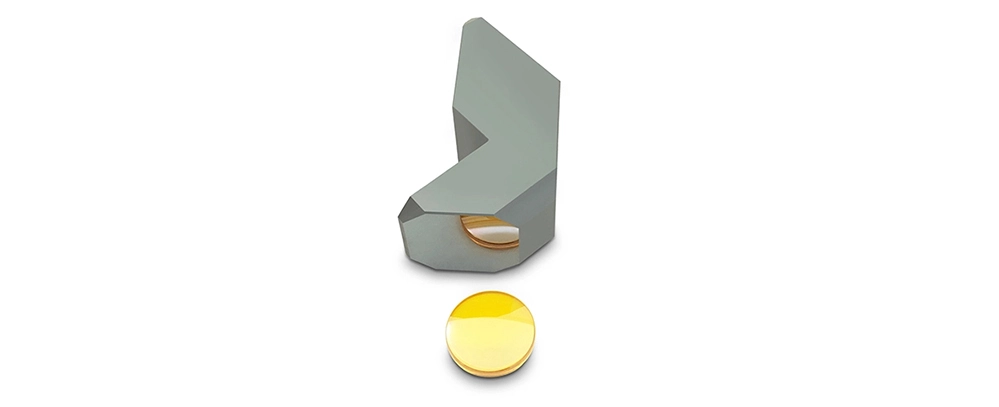

Crafted as a single batch form, this prism is ideal for various applications including infrared imaging, monitoring, inspection, telemetry, and spectroscopy. Customized to your coating needs, it ensures optimal transmittance in the 1.2-7 μm spectral range. Experience reliability and precision with our tailored heteromorphic prism solution.
| Density(g*cm-3) | 2.33 |
| Melting point(℃) | 1420 |
| Dielectric constant | 13 @10GHZ |
| Thermal expansion coefficient(1/℃) | 4.15*10-6 |
| Bulk modulus (Gpa) | 102 |
| Shear modulus (Gpa) | 79.9 |
| Thermal Conductivity (J/k.m.s) | 163.3 @ 273K |
| Specific Heat(J/g.k) | 0.733 |
| Knoop Hardness (kg/mm²) | 1150 |
| Young's Modulus(Gpa) | 131 |
| Poisson's Ratio | 0.266 |
| Coefficient of elasticity | C11 =167 C11 =65 C11 =80 |
| Transmission wavelength | 1000nm-10000nm 30000nm-300000nm |
| Bulk Absorption Coefficient(1/cm) | 1.6*10-3 @ 3000.nm |
| Thermo-optical coeffecient,dn/dT (1/k) | 1.6*10-4 |
| Name | Index of Refraction (nd) | Abbe Number (vd) | Density(g/cm3) | CTE (x 10-6/°C) | dn/dT (x 10-6/°C) | Knoop Hardness | Properties /Typical Applications |
| Silicon (Si) | 3.422 | N/A | 2.33 | 2.55 | 1.60 | 1150 | Low Cost and Lightweight Used in Spectroscopy,MWIR Laser Systems,THz Imaging |
Flexible Optical Path Deviation: Silicon heteromorphic prisms offer versatility in accommodating various optical path deviations. The silicon lens enhance system design flexibility.
Infrared Transparency: High transparency in the infrared spectrum enables precise thermal imaging and sensing.
Durable: Resistant to mechanical stress and environmental factors, ensuring long-lasting performance.
Broad Spectral Range: Transmits wavelengths from UV to IR, suitable for diverse optical systems.
Various options of the customized prism: size and shape, materials, optical coatings, optical performance, mechanical properties, environmental compatibility as well as specific quality control and certifications.
