Dec 16-2024

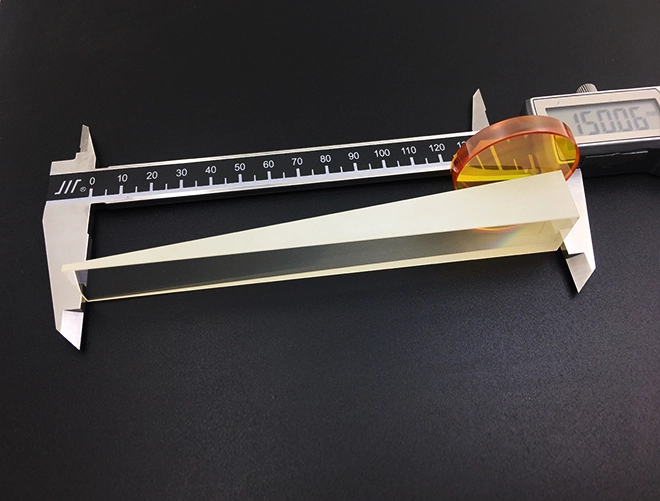

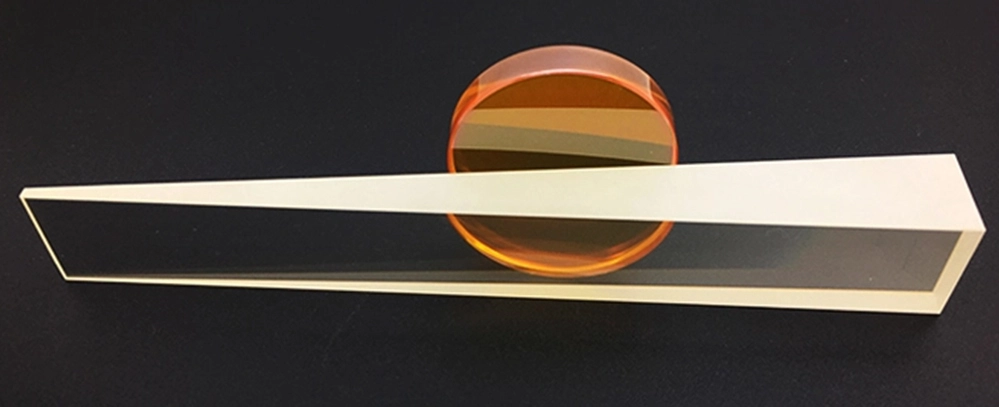

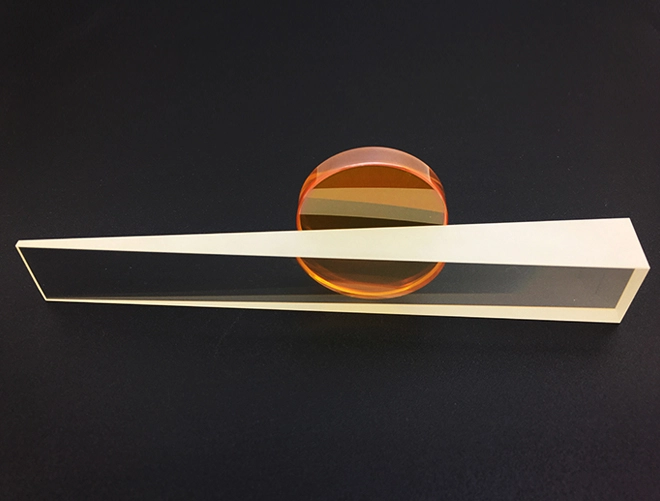

Unlock precision and reliability with our Infrared Optical ZnS Wedge Prism, customized to your exact specifications. Featuring plane inclined surfaces, this prism deflects light towards its thicker portion, enabling precise beam manipulation. Ideal for bulk procurement, it ensures remarkable accuracy in deflecting light to specific angles.

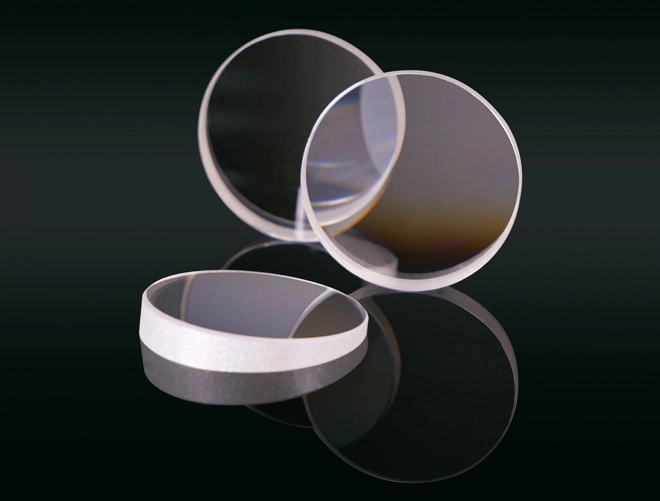

Crafted with premium ZnS material and coated to enhance performance, our Customized Coated ZnS Lens Wedge Prism is perfect for applications in spectroscopy, laser systems, and more. Elevate your optical setup with our tailored solutions, delivering unmatched versatility and reliability in infrared light control.
Choose Yasi Customized Coated ZnS Lens Wedge Prism for optimal results in your high-volume projects.
| Name | Index of Refraction (nd) | Abbe Number (vd) | Density(g/cm3) | CTE (x 10-6/°C) | dn/dT (x 10-6/°C) | Knoop Hardness | Properties /Typical Applications |
| Zinc Sulfide (ZnS) | 2.631 | N/A | 5.27 | 7.6 | 38.7 | 120 | Excellent Transmission in Both Visible and IR,Harder and More Chemically Resistant than ZnSe Used in Thermal Imaging |
| Technical Requirement | Commercial Grade | Precision Grade | High Precision |
| Size range | 1-600mm | 2-600mm | 2-600mm |
| Dimensional tolerance | ±0.1mm | ±0.025mm | ±0.01 mm |
| Thickness tolerance | ±0.1mm | ±0.025mm | ±0.01mm |
| Parallelism | ±3' | ±15'' | ±2' |
| Surface quality | 60-40 | 40- 20 | 20-10 |
| Surface accuracy | 1.0λ | λ10 | λ/20 |
| Coating | 0.1 -0.5mm*45° | ||
| Substrate | ZnS | ||
Precision Beam Control: As one of the top-ranked infrared optics manufacturers, our ZnS Lens wedge prisms offer precise control over beam direction, crucial for alignment and calibration in optical systems. The customized coated ZnS Lens wedge prism ensures optimal performance in demanding applications.
Infrared Transparency: Made from high-quality zinc sulfide glass, these prisms provide high transparency in the infrared spectrum, making them ideal for thermal imaging and sensing applications.
Durable: Resistant to mechanical stress and environmental factors, our ZnS Lens wedge prisms ensure long-lasting performance, even in harsh conditions.
Broad Spectral Range: Capable of transmitting wavelengths from mid-IR to far-IR, our ZnS Lens wedge prisms are suitable for a diverse range of optical applications.
Choose our customized coated ZnS Lens wedge prism for unparalleled precision and reliability in your optical systems.
Laser cutting with ZnS lens: Utilized in the production of medical devices to achieve precise and clean cuts on delicate materials.
Welding applications: Enhances the precision and durability of laser welding in the construction of high-performance sports equipment.
Precision measurement using ZnS lens: Employed in the calibration of high-precision instruments used in geological surveys.
Industrial manufacturing: Applied in the production of consumer electronics for precise laser etching on circuit boards.
Scientific research: Supports advanced research in environmental monitoring, enabling accurate detection of pollutants through infrared spectroscopy.
Optical alignment and calibration: Crucial for the alignment of optical systems in advanced imaging technologies used in medical diagnostics.
Enhanced performance with coated customized ZnS lens for better beam uniformity in industrial manufacturing: Improves the quality and consistency of laser-based additive manufacturing processes, such as 3D printing of metal parts.
