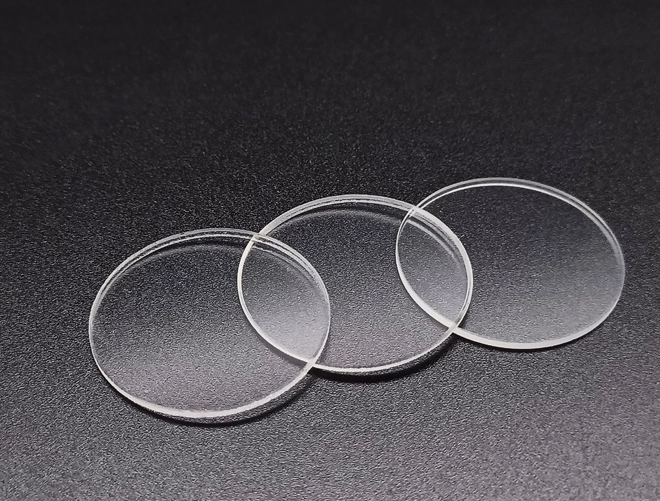

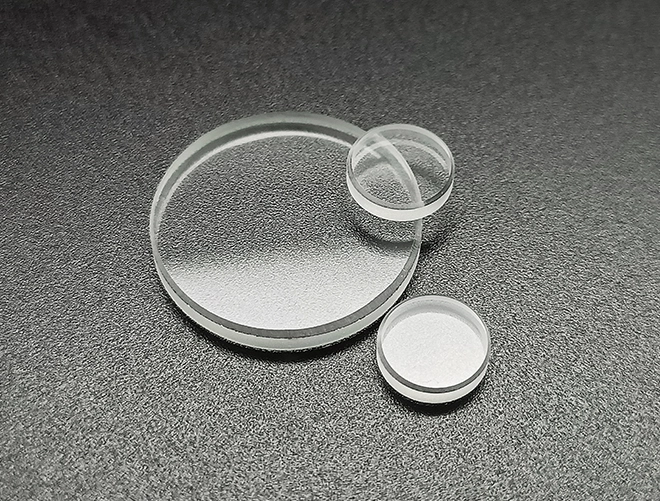

Optical Glass Window: High-quality, transparent glass for optical systems, offering clarity and precision.

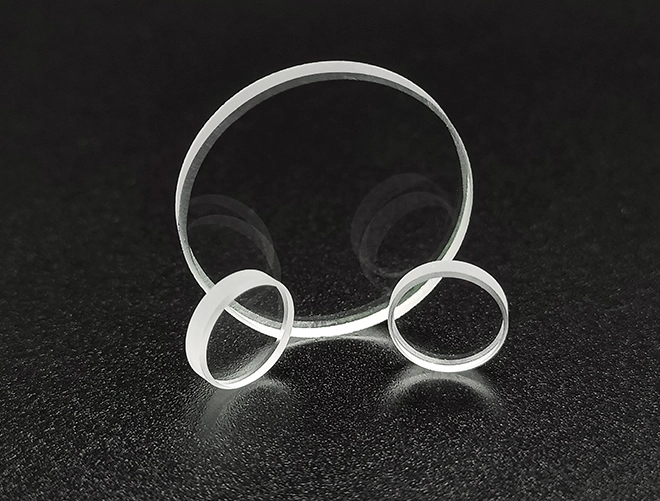

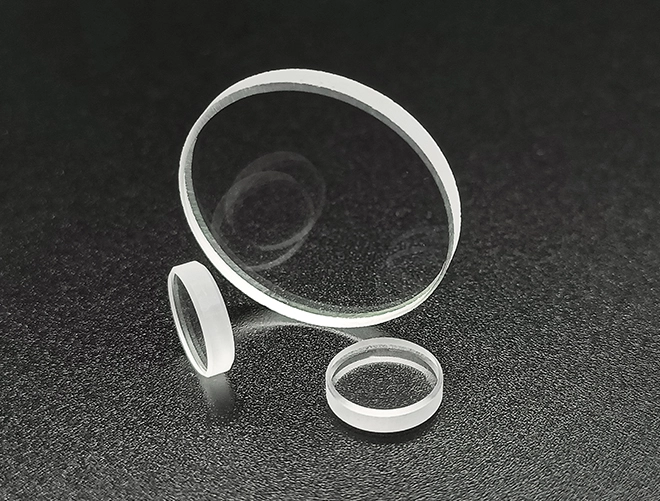

Made from premium K9 glass, known for its excellent optical clarity and mechanical strength, this custom optical window ensures optimal performance. Each k9 window is customized to your specifications and coated with advanced optical coatings to enhance light transmission and reduce reflections. Ideal for use in scientific instruments, laser systems, and high-precision optical devices, our custom k9 window guards provide superior durability and reliability. Choose our customized solutions for high-quality optical components tailored to meet your exact needs.

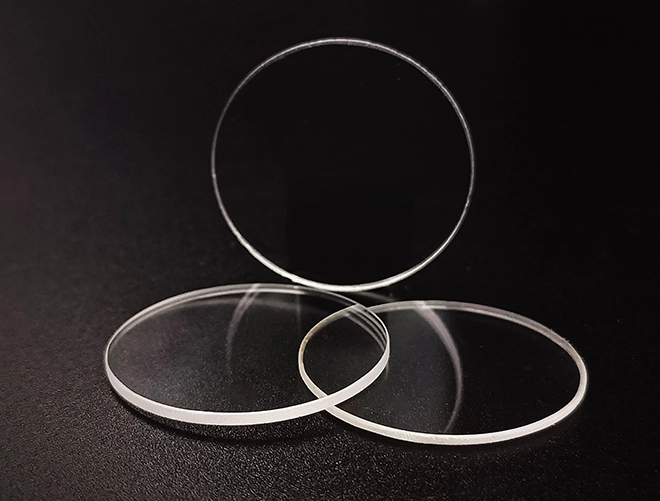

You can choose from the following table. Send your request, and we will produce your expected optical transmission window for you.
| Technical Requirement | Commercial Grade | Precision Grade | High Precision |
| Size range | 1-300mm | 2-300mm | 2-300mm |
| Diameter tolerance | ±0.1mm | ±0.025mm | ±0.01mm |
| Thickness tolerance | ±0.1mm | ±0.025mm | ±0.01mm |
| Angle tolerance | ±5′ | ±30'' | ±2' |
| Surface quality | 60-40 | 40-20 | 20-10 |
| Surface accuracy | 1.0λ | λ/10 | λ/20 |
| Coating | AR coating or reflecting coating | ||
| Bevelling | 0.1-0.5mm*45° | ||
| Substrate | Optical glass/glass ceramics /Fused silica | ||

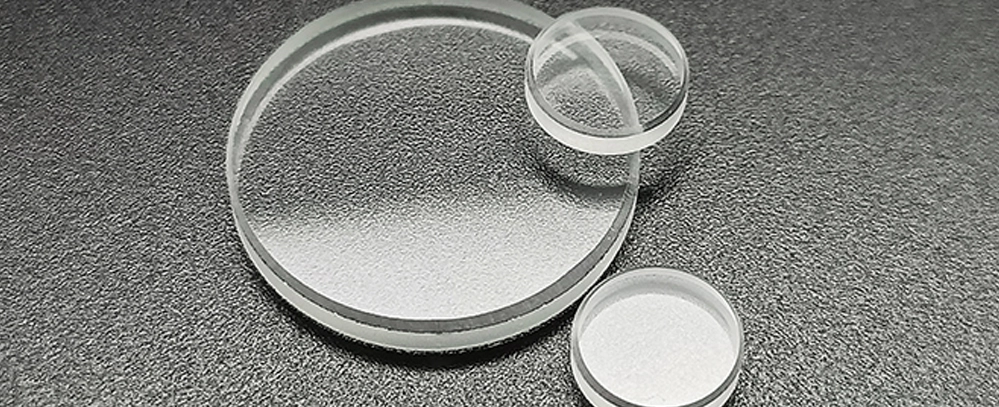

The advantages of optical glass windows include their transparency, which allows for the passage of light without distortion, making them ideal for optical inspection and protection. k9 windows' flat and parallel surfaces ensure minimal light deviation, contributing to high-quality optical transmission. Additionally, these custom optical windows are resistant to thermal and environmental conditions, maintaining their optical properties in challenging environments. This durability and reliability make the optical glass windows suitable for a wide range of applications, including imaging systems, laser devices, and industrial sensors, where optical clarity and protection from external elements are essential.
Regular Inspection and Cleaning Schedule: Implement a routine inspection and cleaning schedule to ensure all K9 optical transmission windows are free from dust, fingerprints, and other contaminants. This helps maintain optimal performance and extends the lifespan of the optical components.
Use of Appropriate Cleaning Solutions: Utilize specialized optical cleaning solutions and lint-free wipes to clean the surfaces of the custom k9 window guards. Avoid using abrasive materials or household cleaners, as they can damage the precision-polished surfaces of these optical glass windows.
Proper Handling and Storage: Train staff on proper handling techniques to prevent scratches and other damage during installation and maintenance. Store the custom optical windows in a clean, dry environment with protective covers to prevent contamination and physical damage.
