Jan 15-2025

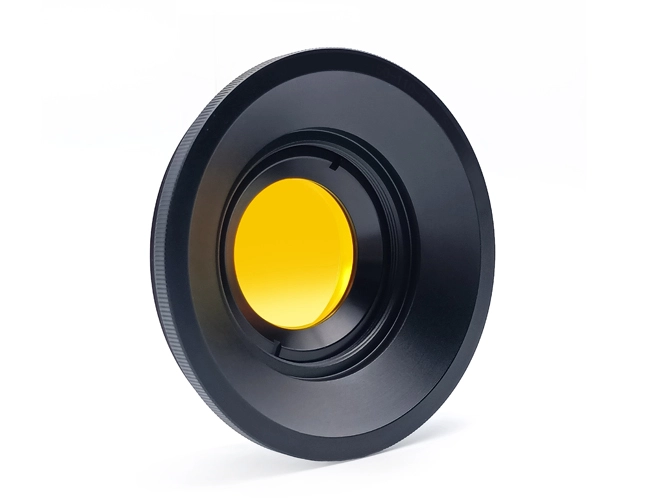

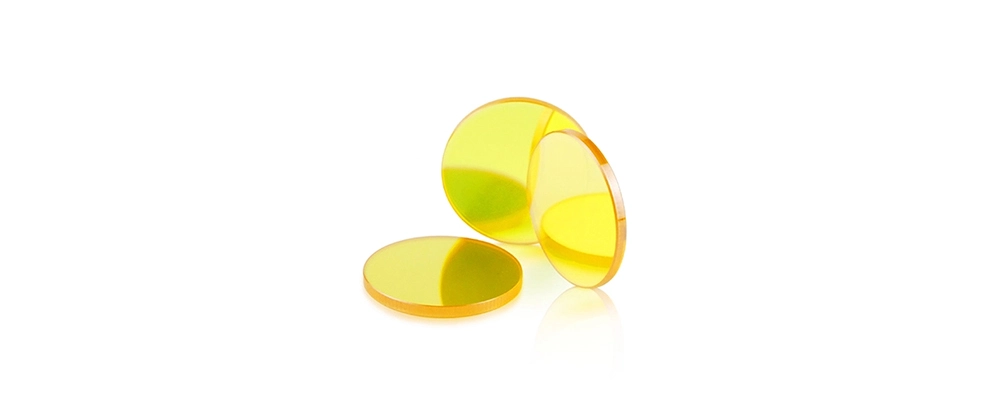

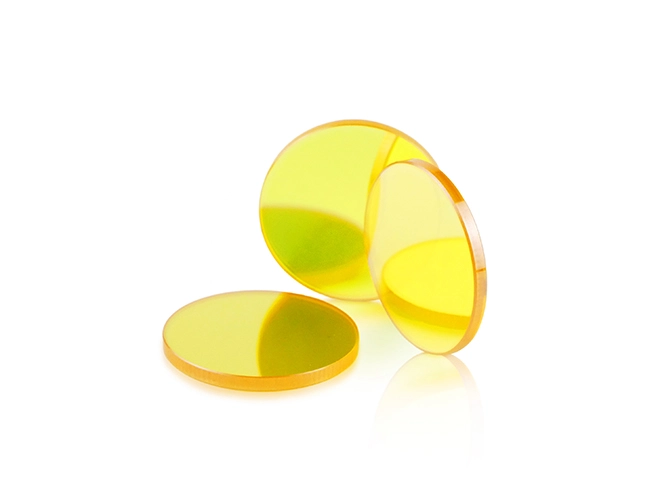

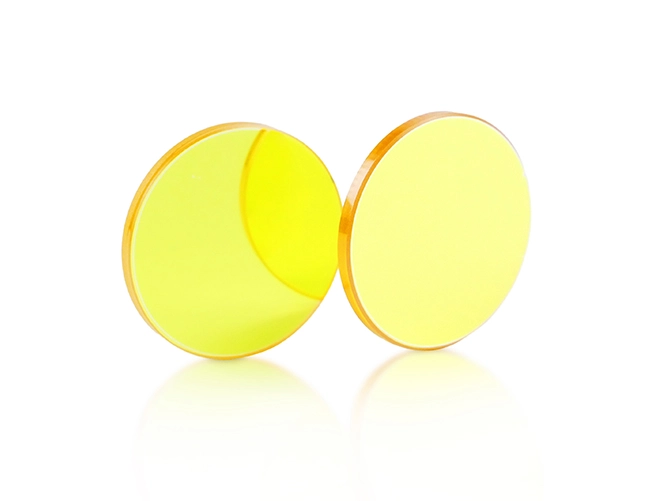

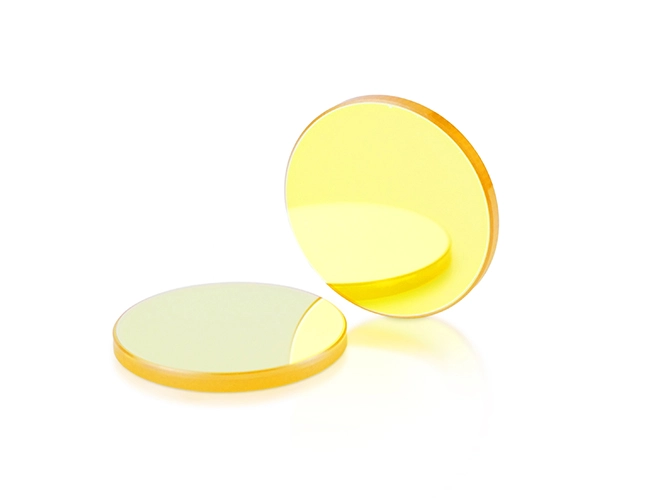

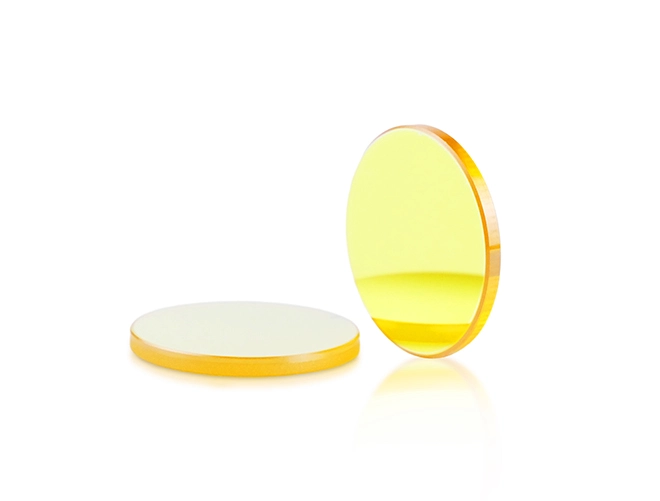

Beam combiners are partial reflectors thatcombine two or more wavelengths of light-one in transmission and one in reflection onto a single beam path. The co2 laser red dot combiner we provide is precisely designed to ensure the efficiency and stability of beam synthesis to meet various industrial and scientific research needs. Our customized co2 laser beam combiner service: according to the specific needs of customers, we provide a variety of customized options such as size, shape, coating type, etc. to ensure that the product fully meets your application requirements.
| Diameter(mm) | Material | Thickness(mm) | Remark |
| 12.7 | ZNSE | 3 | Beam combiners are partial reflectors that combine two or more wavelengths of light -- one in transmission and one in reflection --onto a single beam path. Since the 10.6 micron laser is invisible, in the actual process of laser marking, we often need to know where the focus of the laser is, SO as to determine if the position of marking is correct or not. By the beam combiner, we combine the red light of the visible 650nm emitted by the diode with the 10.6 micron laser into one beam of light, so that where the 650nm red light is pointing is the position of 10.6 micron laser, thus achieving the purpose of using the red light of 650nm to indicate the 10.6 micron laser Surface1: T> 99%@10.6um, 45AOISurface 2: T> 99%@ 10.6um R>85%@650nm, 45AOI |
| 15.9 | ZNSE | 3 | |
| 19.05 | ZNSE | 3 | |
| 20 | ZNSE | 2/3 | |
| 25 | ZNSE | 3 | |
| 25.4 | ZNSE | 3 | |
| 27.9 | ZNSE | 3 | |
| 38.1 | ZNSE | 3 |
Increased Power: Combines multiple beams to create a more powerful output.
Efficiency: Minimizes energy loss, ensuring maximum use of laser power.
Precision: Allows for accurate alignment and control of combined beams.
Versatility: Compatible with various laser types and wavelengths for diverse applications.
√ Whether you need a small, standard or large co2 laser red dot combiner, we can customize it to your specific needs. Our products have a wide range of sizes to suit a variety of equipment and installation environments.
√ Our customization service can be accurate to the millimeter level, ensuring that the combiner fits your equipment perfectly. Whether it is length, width or thickness, we can adjust it according to your requirements.
√ All customized co2 laser red dot combiners are made of high-quality optical glass and coating materials to ensure high transmittance and low absorption, providing the best optical performance.
√ With advanced production equipment and efficient production processes, we can complete custom orders in a short time, ensuring that your co2 laser red dot combiner is on time.
